Automatic Cleaning Ionizing Air Blower
Automatic Cleaning Ionizing Air Blower
DF261R / DF261P Type
The 70KHz high-frequency technology has excellent automatic ion balance and fast static elimination speed, and has a 12-step air volume adjustment function, which can be used in a variety of scenarios through static elimination methods such as “light breeze” and “high speed”. For the two different purposes of “long-distance power removal” and “large-scale power removal”, ionizing fans are equipped with two kinds of louvers, which can be replaced according to the application.
Features:
- High-frequency AC ionization technology, extremely stable ion balance
- Digital display, convenient interactive experience
- Automatic ion needle cleaning system, can set the time scheduled cleaning
- Fully control the fan airflow and increase the wind speed
- Up to 6 alarm functions, which can intuitively display abnormal status
- Reassuring safety design, high-voltage circuits and fans stop when the grille is removed
- Support IO control or RS485, network monitoring function
High-frequency technology
A system that uses piezoelectric elements to increase the AC voltage by ±2kV and applies it to high-frequency electrode pins. The cycle of positiveand negative ions is 70,000 Hz.
Maintenance-saving, regular automatic cleaning, motor reverse vacuuming during cleaning
During automatic cleaning, the fan is reversed to discharge the dust to avoid blowing on the product, and regular maintenance is very important to maintain the performance of the product.
Large-scale long-distancer static removal
High-frequency AC ionization technology, automatic instinctive ion balancing
Newly developed air duct structure
Full control of fan airflow with class-leading fast static elimination

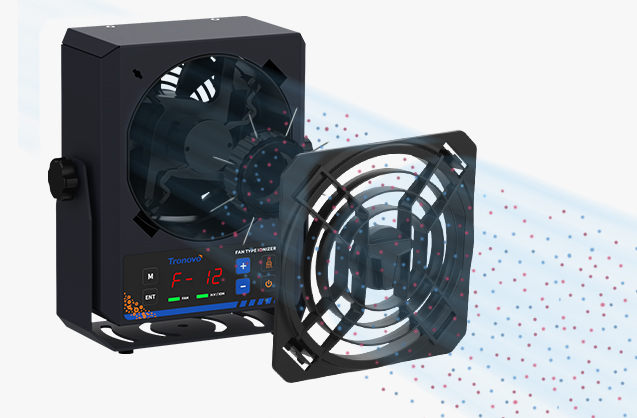

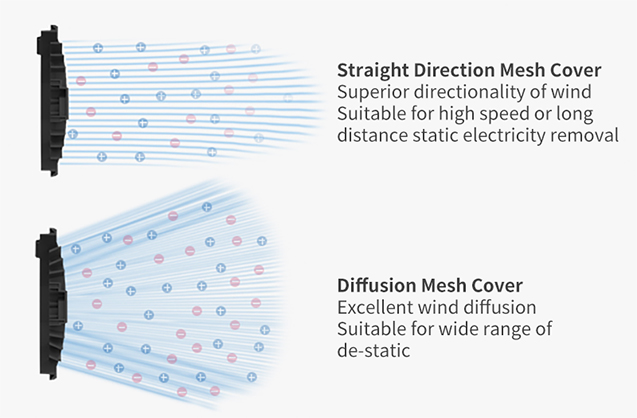

There are two types of grilles, which can be used interchangeably depending on the application
For the two different purposes of “long-distance static removal” and” large-scale static removal”, it is only necessary to replace the grille, and these two types of grille are standard at the factory

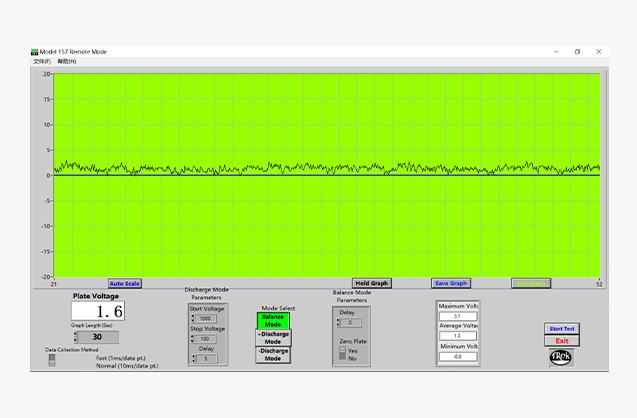

Extremely stable ionic balance
Performance in line with electronic industry standards and internationally recognized ESD management specifications for electrical and electronic products
The key lock function prevents you from changing the settings at will
It is used to prevent unauthorized personnel in the production line from operating the ionizing fan buttons, adjusting the wind speed, changing the function key settings, etc.

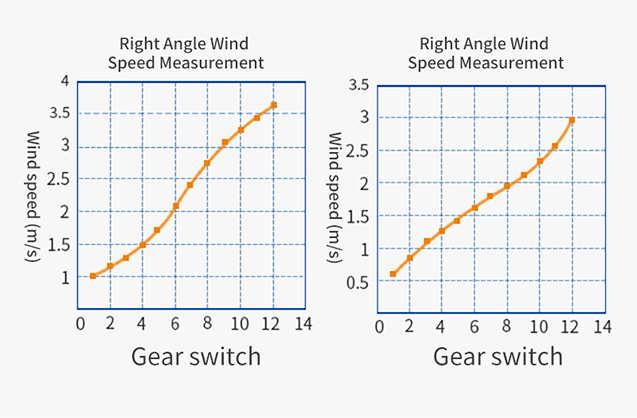

12 levels of wind speed adjustment function
In order to meet the different application scenarios of low air volume and high air volume, we have designed a wider air speed adjustment gear which can use low wind speed to eliminate static electricity in light small parts operation, and high air speed to eliminate static electricity in dust removal or long-distance operation.
It is used for l/O control functions in industrial automation
The l/0 interface communication is used to realize the online connectionof the automatic production line, which can realize the remote start and stop of the ionizer fan, and receive abnormal alarm signals.* This feature is only available on the DF261P model
The communication interface is rich inRS485 communication
RS485 is stable and uses a bus to connect devices reliably. Unless the device interface hardware is damaged or the line is disconnected, the communication effect can be maintained all the time.* This feature is only available on the DF261R model

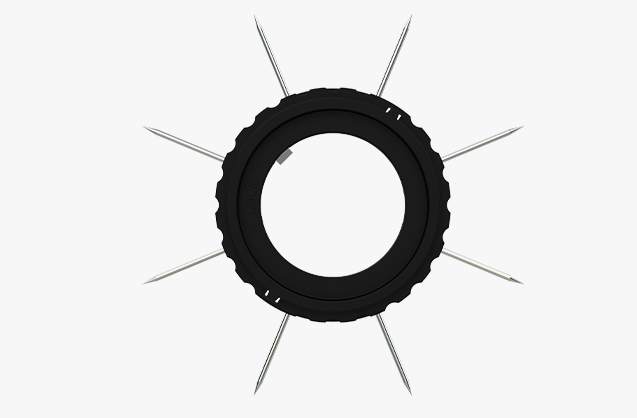

Special tungsten alloy discharge needles are not easy to wear
Tungsten alloy discharge needle has the characteristics of high strength and high temperature resistance, and has a longer service life than SUS material discharge needle
The wireless networking can be connected to the MES system of the factory
The flexibility and mobility of WIFI will be better, and the location will not be limited by the location of the network cable, which can reduce many cumbersome wiring processes. * The WIFI module needs to be purchased separately
