Small HF Ionizing Air Blower
Small HF Ionizing Air Blower
DF231P Type
The lightweight design, stable ion balance, independent of the installation position, can be easily installed inside the device. It quickly eliminates static electricity and provides the best protection against static damage of the component. When an abnormal discharge is perceived, an alarm signal is output, and the power supply is cut off at the same time to prevent problems before they occur. In the case of contamination of the electrode pin, etc., the self-diagnosis needs to be cleaned, and an alarm signal is output.
Features:
- Compact design, ultra-thin thickness of only 39mm
- High-frequency AC ionization technology, extremely stable ion balance
- Newly upgraded discharge needle detection function, ion needle abnormal warning
- Four automatic alarm functions, which can intuitively display the abnormal status
- 5 levels of air volume adjustment, the air volume can be adjusted by pressing buttons
- IO control interface and wireless and wired networking
Signal input and output control functions
Static elimination fan

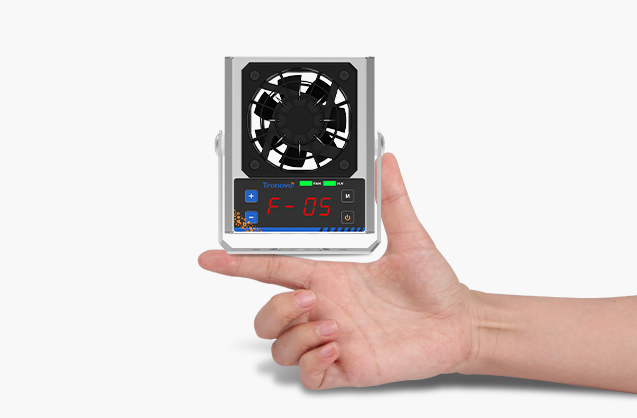

Small design, only the size of the palm of your hand.

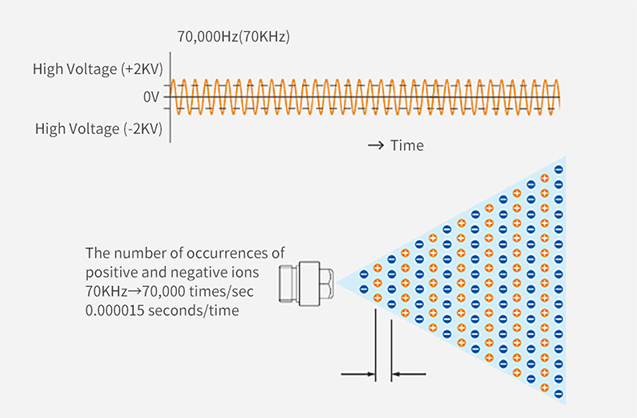

High-frequency AC ionizing technology
- High level of static elimination, low voltage 2500V; Ion generation
- frequency: 70,000 times/second;
- Extremely stable ion balance (no adjustment required)
- Ions can be transported through pipes
- The power is dissipated quickly
- Can be used up close
- High level of security

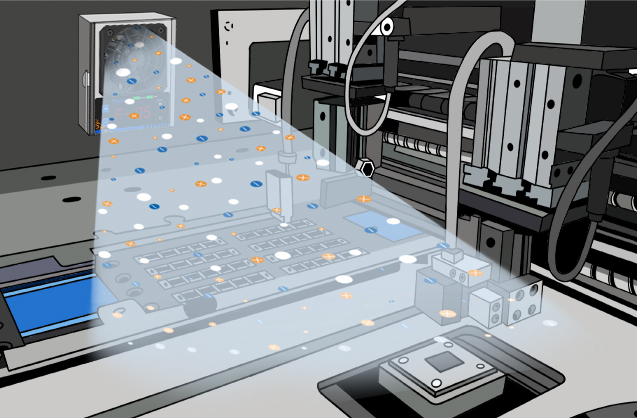

Static elimination inside the device
The lightweight design, stable ion balance, easy to hang in any position, can quickly eliminate the static electricity generated in today’s high-end manufacturing process, and provide the best anti-static damage protection for components;

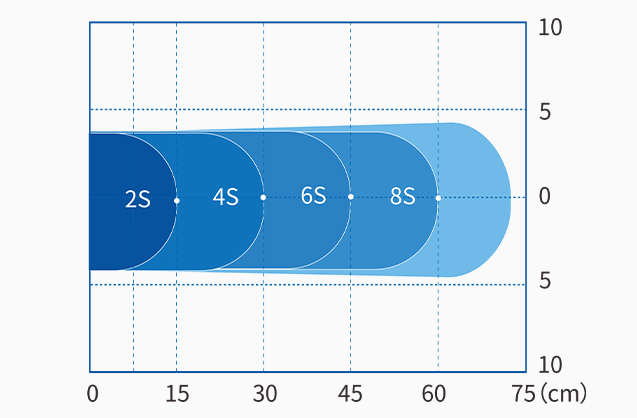

Typical dissipation time
According to the United States ESD Institute standard: ANSI/ESDS20.20-2014, each point represents the static dissipation time from 1000V to100V at maximum wind speed.
Miniaturization -equivalent to 1/4 of the size of conventional products*
The company’s proprietary technology achieves both ultra-compact and high-speed static elimination, making it easy to install in tight locations or for additional installation.

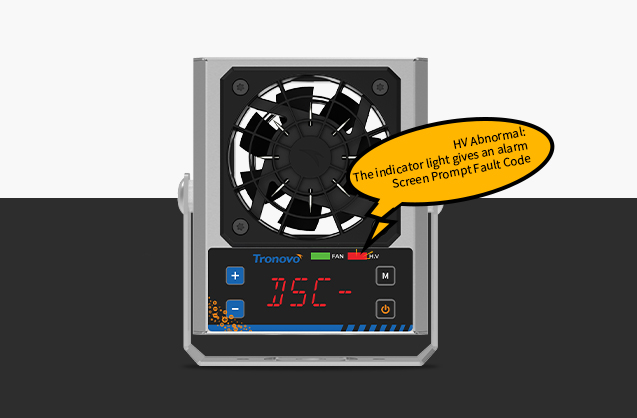

Alarm output - visual display of operational status
Equipped with a display, it can confirm the operation status according to the content displayed on the screen, output an alarm signal when an abnormality is perceived, and cut off the power supply at the same time, so as to prevent problems before they occur.

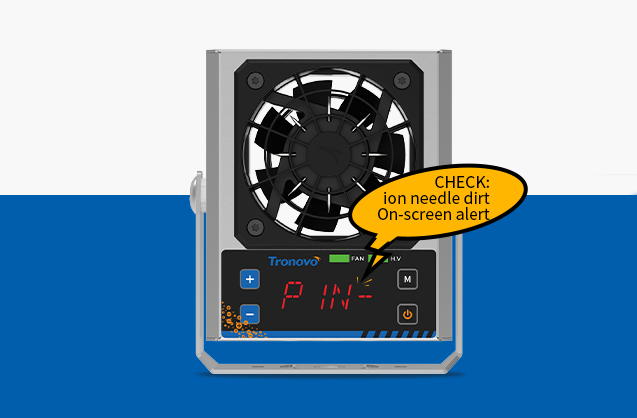

Maintenance Alarm -Equipped with ion needle dirt detection function
The level of dirt in the ion needle is monitored at all times, and maintenance is required through signal output and LED light to warn you.
Intelligent monitoring -with network monitoring function
Manually through the mobile phone WeChat or computer software can manage the ionizer switch, adjust the air volume, and check the working status of the ionizer in real time.
Safer - the release voltage is only 2200V
The imported customized ceramic high-pressure generator is reliable and safe.

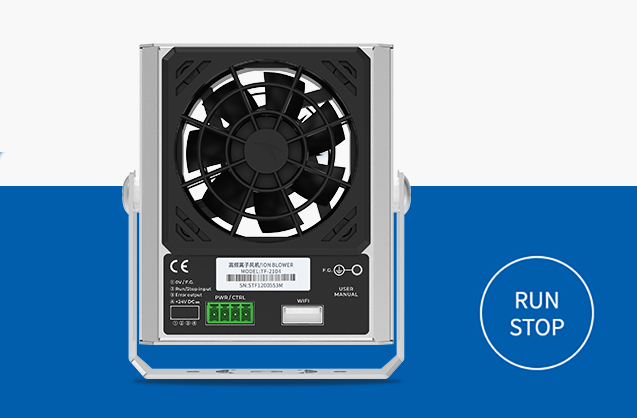

IO interface - signal input and output control
For PLC automation control, the IO interface is the most important component.
Practicality - two -way alarm fault signal output
Use fault signals to remotely monitor ionizing fans for maintenance or faults
