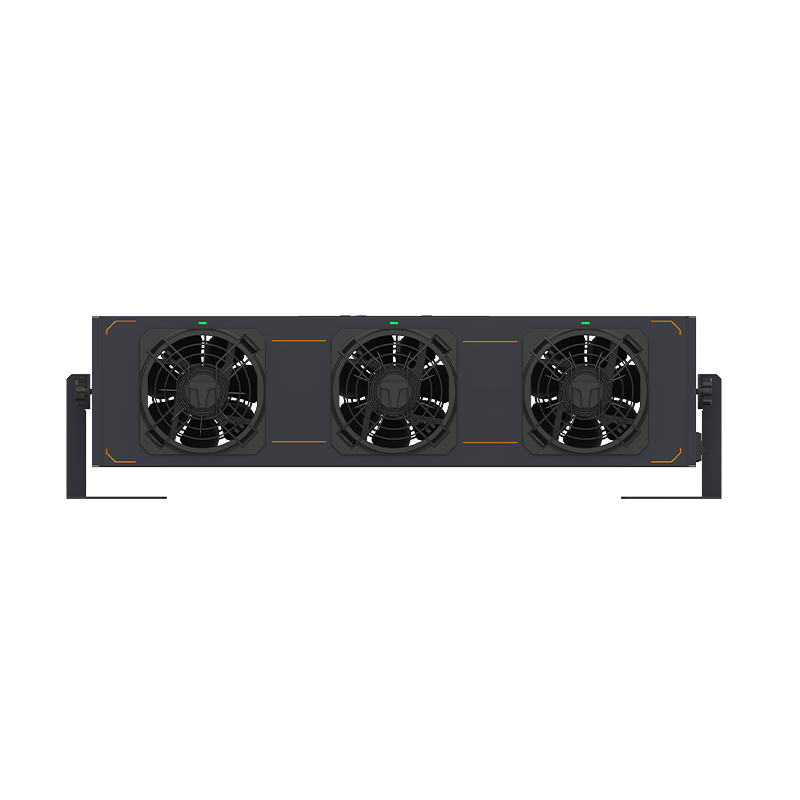

Smart HF Ionizing Air Blower
Smart HF Ionizing Air Blower
DF46X Type
For electronics manufacturing and assembly, high-frequency ionization technology and high-speed fans are used to eliminate static electricity at high speeds with low maintenance requirements. Reliable wiring design, built-in appointment function of the ion needle cleaning brush, reduce the frequency of maintenance. The ionizing fan has 5 kinds of self-alarm monitoring functions, and each air outlet is equipped with a status indicator to display the operating status and ion abnormalities in real time.
Features:
- High frequency AC ionization technology, good electrostatic
removal effect - Support network remote monitoring
- 5 abnormal alarm functions, independent tuyere alarm indicator
- Easy maintenance, automatic cleaning of the ion needle, detachable ion needle ring
- Meets the requirements specification, ANSI/ESD S20.20EC61340-5-1
- Automatic control, standard 10 interface, operating signal/fault signal
- 12 adjustable wind speeds, to meet different operating scenarios
- 2200V safe voltage, multiple protection circuits, no combustion. not afraid of short circuit
- Imported piezoelectric ceramic transformer, long-life tungsten ion needle, durable

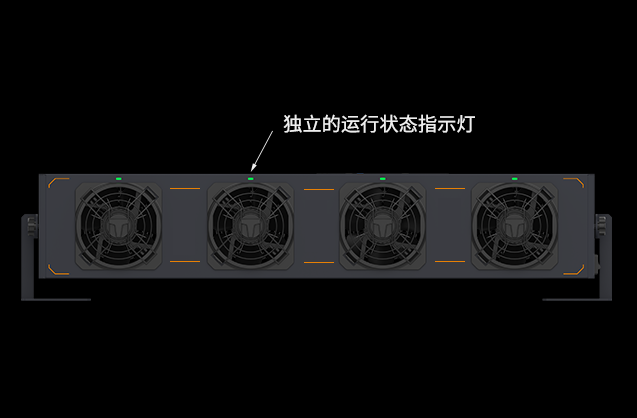

Visualization - Visualize the operating status
Equipment that is not easy to manage represents an intangible cost of expenditure, and Ai has added an independent operation indicator light with innovation to improve the efficiency of personnel inspection.
Intelligent - with network monitoring function
Manually through the mobile phone WeChat or computer software can manage the ionizer switch, adjust the air volume, and check the working status of the ionizer in real time.

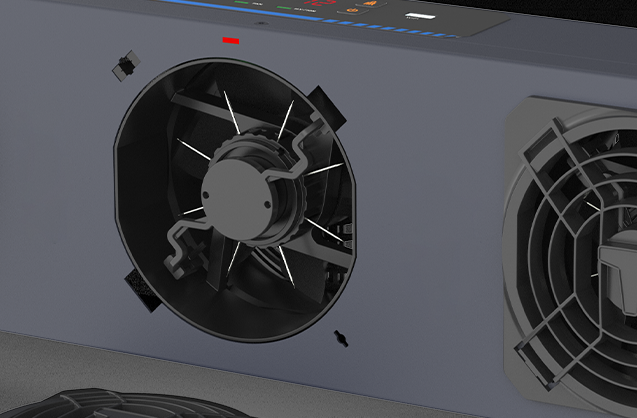

Automation -Automatic cleaning of ion needles
With automatic cleaning function, maintenance-free and maintenance-free users can set the automatic cleaning time arbitrarily, and display it through the LED digital tube.

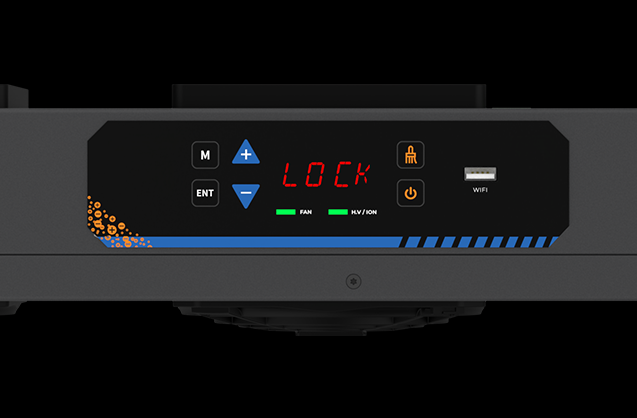

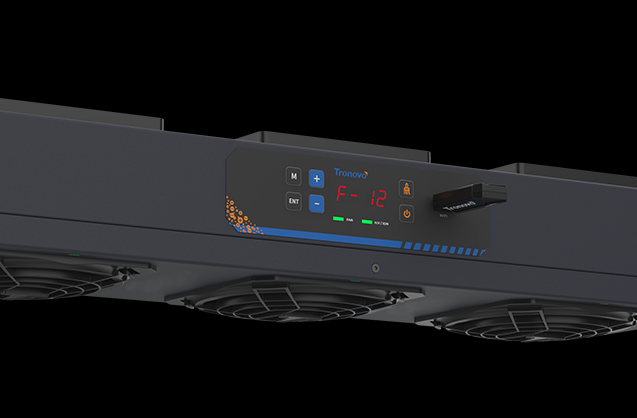

Permissioned - Employees change settings without authorization
You cannot adjust the parameters at will, change the settings, and realize the operation authority management of the device by customizing the KEY
High-frequency technology

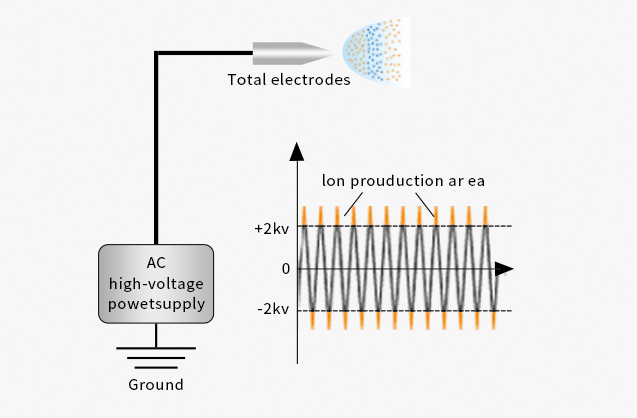

A system that uses piezoelectric elements to increase the AC voltage by ±2kV and applies it to high-frequency electrode pins. The cycle of positive and negative ions is 70,000 Hz.

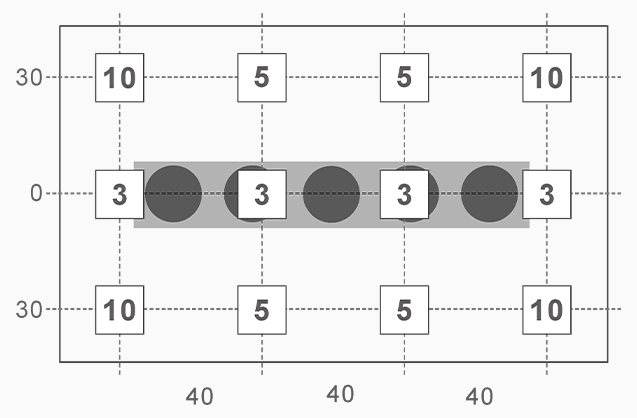

Typical dissipation time
The DF465 ionizing blower is 45cm away from the CPM monitor, and the CPM test board is 15cm away from the desktop. Each point represents the time from1000V to 100V at maximum wind speed.

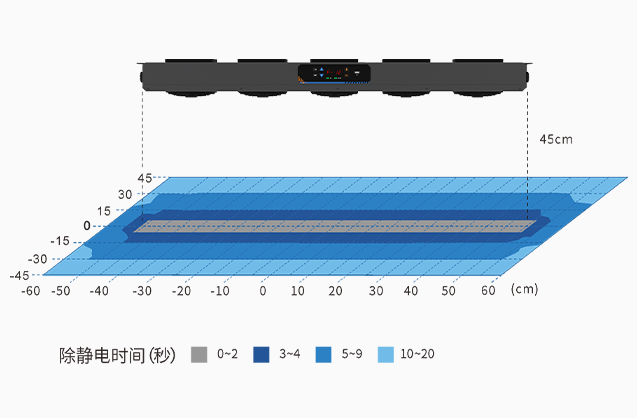

Large-scale long-distance static removal
High-frequency AC ionization technology, automatic instinctive ion balancing.

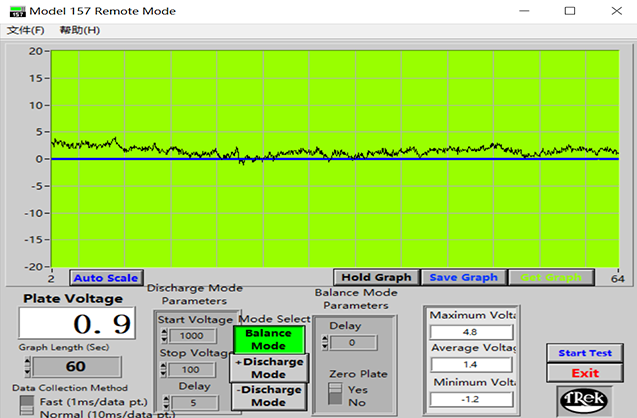

Ion Balance 【 Performance Diagram 】
Each needle can release positive and negative ions, compared with the DC type is not easy to adsorb charged particles in the environment, the ion balance can be maintained for a long time (no adjustment is required), and at the same time, it has the characteristics of fast power dissipation, safety and reliability, close use, and maintenance saving.

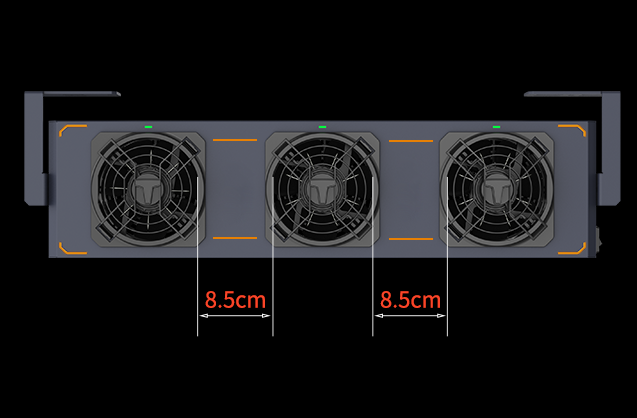

Wide Coverage - Ultra-narrow duct spacing
The ultra-narrow air outlet design provides better ion coverage.
Large range - optional diffuser-shaped grille
The diffusivity of wind is excellent, and itis suitable for a wide rage of static electricity removal.

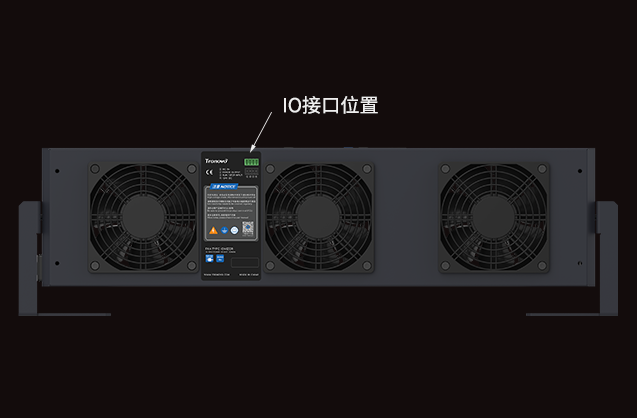

IO interface - signal input and output control
For PLC automation control, the IO interface is the most important component.
