Ultra-thin Small HF Ionizing Blower
Ultra-thin Small HF Ionizing Blower

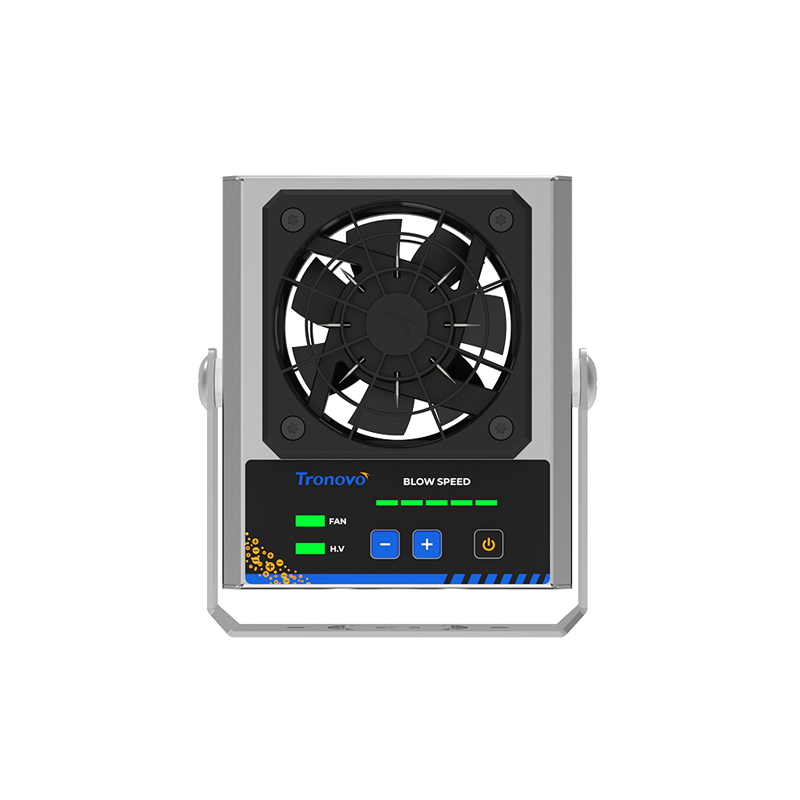

DF231 Type
The lightweight design, stable ion balance, independent of the installation position, can be easily installed inside the device. It quickly eliminates static electricity and provides the best protection against static damage of the component. When an abnormal discharge is perceived, an alarm signal is output, and the power supply is cut off at the same time to prevent problems before they occur. In the case of contamination of the electrode pin, etc., the self-diagnosis needs to be cleaned, and an alarm signal is output.
Features:
- Compact design, ultra-thin thickness of only 39mm
- High-frequency AC ionization technology, extremely stable ion balance
- Newly upgraded discharge needle detection function, ion needle abnormal warning
- Four automatic alarm functions, which can intuitively display the abnormal status
- 5 levels of air volume adjustment, the air volume can be adjusted by pressing buttons
- 10 control interface and wireless and wired networking

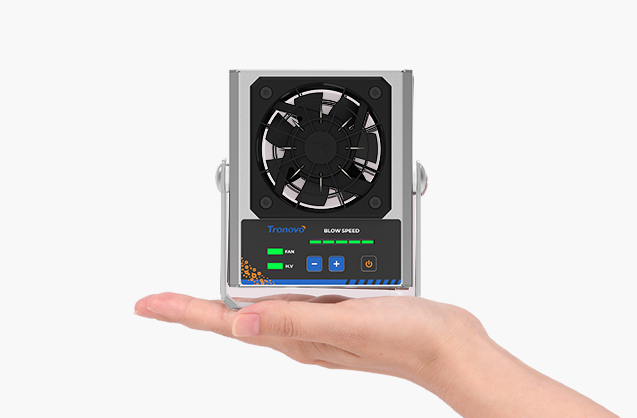

Small ionizing blower
Slim and lightweight design for installation in tight spaces.
High-frequency AC ionizing technology
- High level of static elimination, low voltage 2500V; Ion generation
- frequency: 70,000 times/second;
- Extremely stable ion balance (no adjustment required)
- Ions can be transported through pipes
- The power is dissipated quickly
- Can be used up close
- High level of security

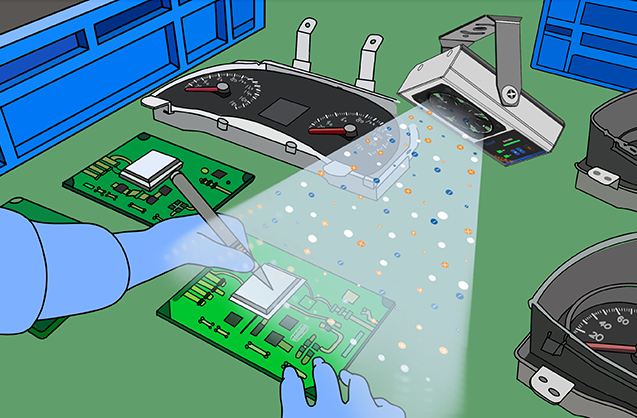

The instrument panel is assembled with static elimination
The impact of static electricity on product quality is very large, dust adsorption caused by electrostatic attraction, dielectric breakdown caused by electrostatic discharge, and the installation of static eliminators in the working area greatly reduces the hidden dangers of electrostatic in the production process of electronic components
Typical dissipation time
According to the United States ESD Institute standard: ANSI/ESDS20.20-2014, each point represents the static dissipation time from 1000V to100V at maximum wind speed.

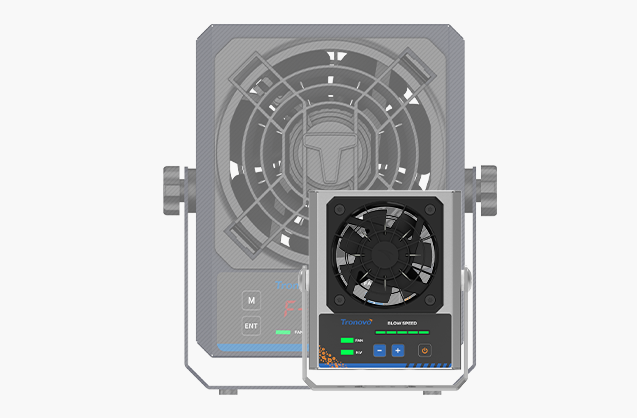

Space-saving-equivalent to 1/4 the size of conventional products*
With a thickness of only 38.8 mm, it is small in size, flexible in operation, and takes up less space, so it can be easily installed inside the device or in small spaces.

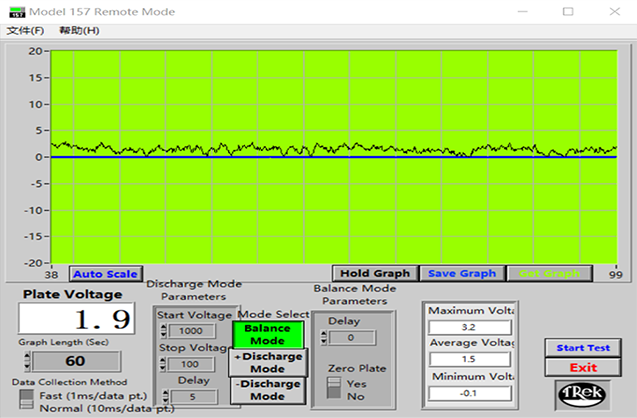

Ion Balance 【performance Diagram】
Each needle can release positive and negative ions, compared with the DC type is not easy to adsorb charged particles in the environment, the ion balance can be maintained for a long time (no adjustment is required), and at the same time, it has the characteristics of fast power dissipation, safety and reliability, close use, and maintenance saving.

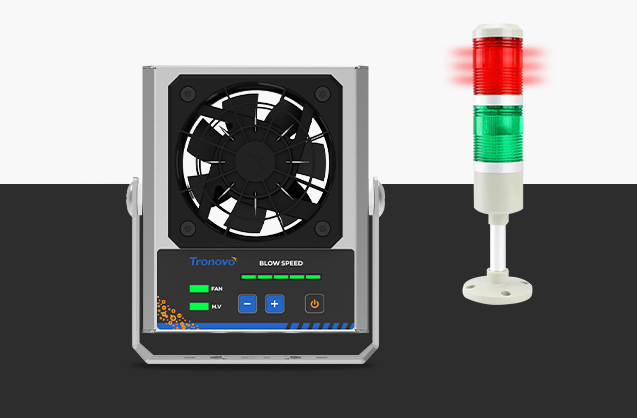

Fan Alarm-Visualizes the operating status of the fan
When the fan is abnormal, the red light will be displayed, and the power supply will be cut off to prevent the problem before it happens.

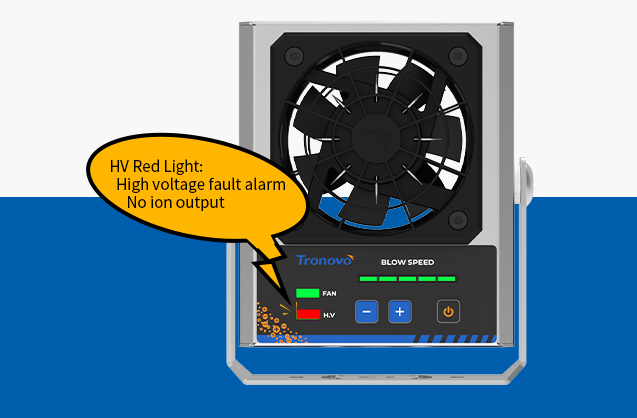

High Voltage Alarm - Visualizes ion output status
At all times, when the output state of the ion senses a high voltage abnormality, a red light is displayed to warn it.

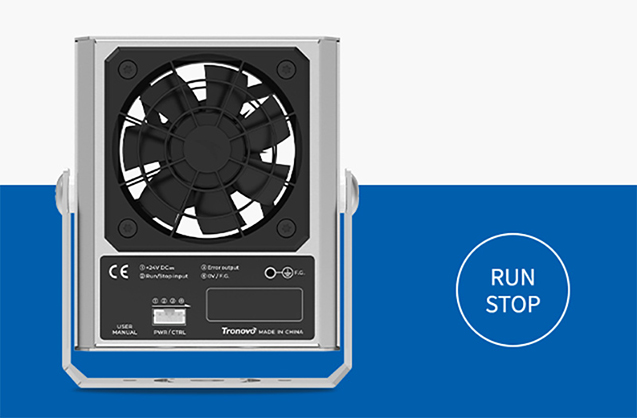

Remote monitoring and control-Reduce manual intervention and increase efficiency
Realize the automatic operation of the equipment, such as automatic start and stop, automatic alarm, etc.
Fault feedback and maintenance -Real-time alerts to quickly locate problems
The PLC interface can improve the reliability and stability of theequipment.
