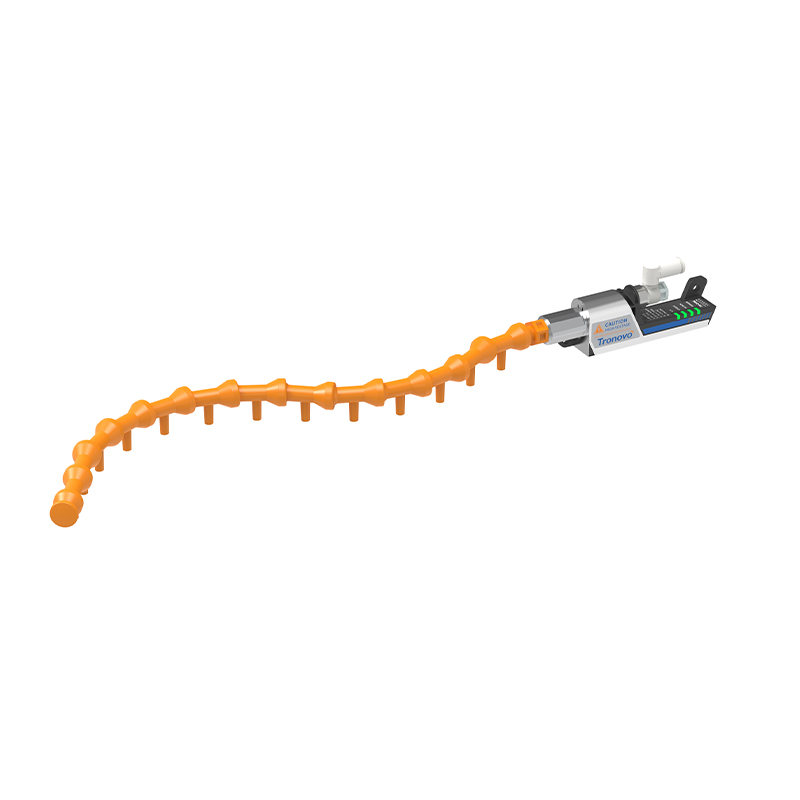

Bamboo Gimbal nozzle
Bamboo Gimbal nozzle
DN251-SN19 Type
DN252-SN19 type
The ultra-small design aims at the workpiece in tight locations to remove dust and contaminants while eliminating static electricity. There are a wide variety of nozzles, so you can choose according to your application. By using a high-frequency AC method, an extremely stable ion balance is achieved. Since the ion balance is not affected by the supply air pressure and the installation distance. there is no need to perform cumbersome adjustments after installation.
Features:
- High-frequency AC ionization technology, extremely stable ion balance
- Ultra-small design for easy assembly inside the device.
- There are a wide variety of nozzles, and you can choose different types according to the application
- Signal input and output control functions, using IO communication to achieve automatic connection
- Reassuring safety design, 24V DC power supply, no need for high-voltage cables
- Equipped with running status indicator, real-time display of operating status and ion abnormality
- Easy to maintain, the ion needle can be easily removed and cleaned
The LED indicator visually shows the working status
It has an “inspection function” that automatically prompts the cleaning of the ion needle, and various functions can be checked by LED indicators and the operating status of the static eliminator can be monitored externally by using the output of various functions.
High-frequency AC ionization technology
- High level of static elimination, low voltage 2500V; Ion generation
- frequency: 70,000 times/second;
- Extremely stable ion balance (no adjustment required)
- Ions can be transported through pipes
- The power is dissipated quickly
- Can be used up close
- High level of security
Positive dissipation time measurement chart:
The time required to reduce the charge of a live object with +1000V to
Negative dissipation time measurement plot:
The time required to reduce the charge of a live object with-1000V to -100V.
Stable ionic equilibrium
When positive and negative ions are continuously irradiated, the electrostatic voltage of the target is close to 0 V.
