Anti-static Access Control System
Anti-static Access Control System
DM321E/MP341E type Type
Channel type stand-alone anti-static access control system (huma body comprehensive electrostatic test access control channel gate is an advanced product that combines electrostatic testing an channel gate access control; In many places where electrostatic protection zones (EPAs)are set up, the testing of electrostatic footwear and electrostatic wristbands is carried out in a traditional test-only manner, and it is not easy to implement the situation that people who have not passed the test are prohibited from entering the EPA in the first place.
Features:
- Solid-state touch test buttons to keep tests accurate and extend the life of the tester
- 3 sets of high-brightness LED status indicators to indicate high/pass/low resistance of wrist strap, left shoe, and right shoe
- Set the test range with the DIP code, and freely configure the control range of wristbands and electrostatic shoes
- Support single-wire and dual-wire wrist strap measurement, and provide dual interfaces to improve the service life of the plug and dial

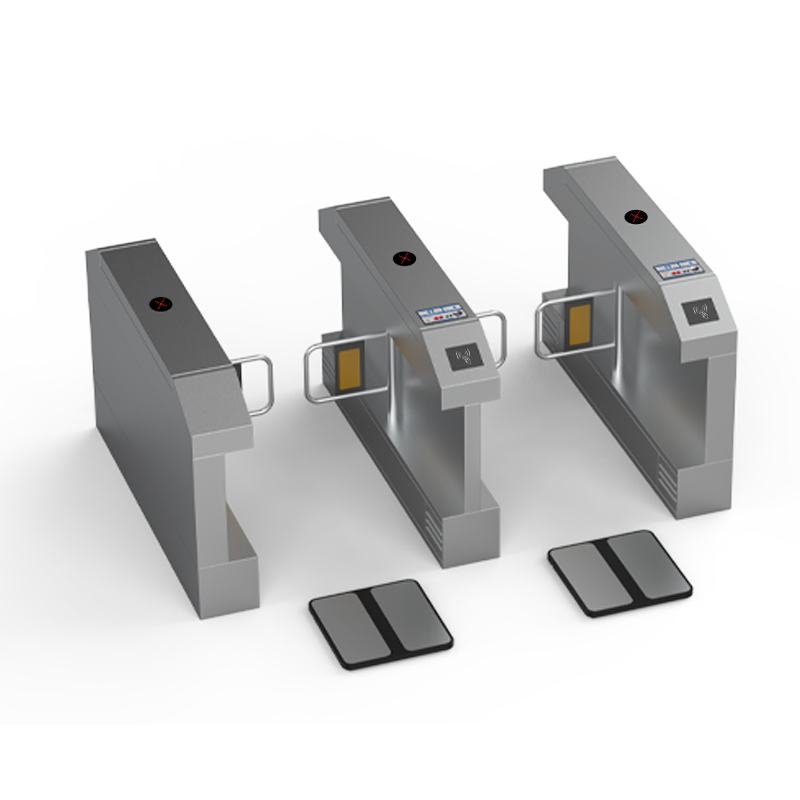

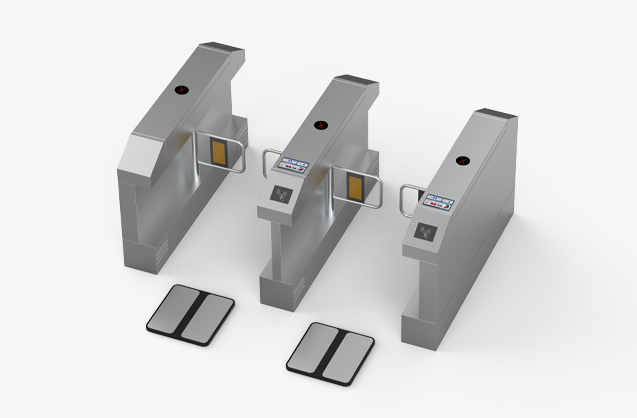

Fingerprint wing gate electrostatic access control case
Fingerprint wing gate electrostatic access control case

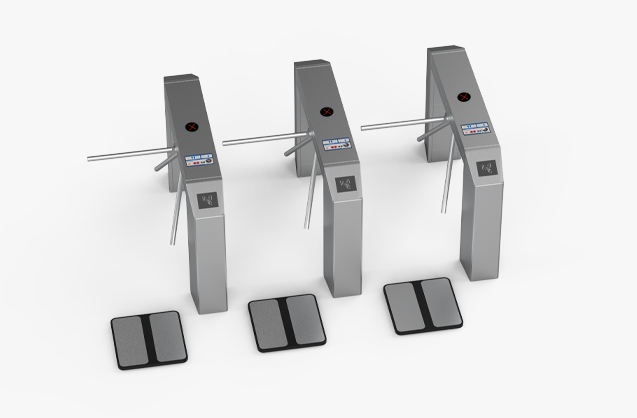

Three-roller turnstile electrostatic access control case
Three-roller turnstile electrostatic access control case
Cargo air shower room access control case
Cargo air shower room access control

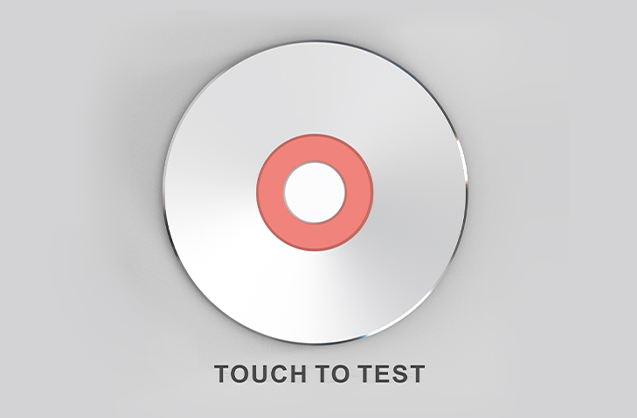

No mechanical wear and durability
The test key uses an inner/outer metal conductor, and the test is started by holding down the finger to connect the inner/outer conductor. Solid- state test keys can be used to avoid mechanical damage.

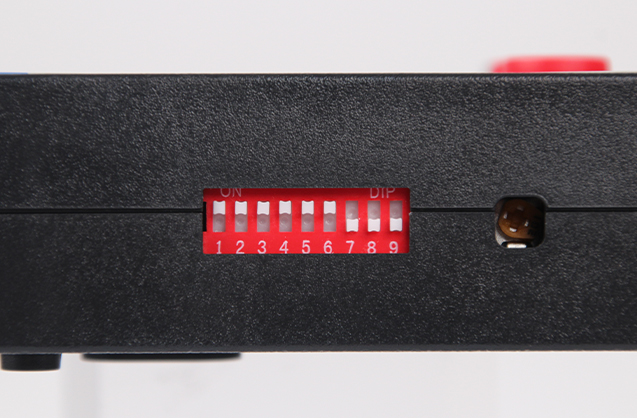

Test scoping setting
The upper limit of the bracelet and the upper and lower limits of anti-static shoes can be set through the DIP switch on the left side of the device according to the control conditions.
ANS//ESD S20.20-2014 certification requirements
EPA Electrostatic Discharge Protection Zone, Personnel Grounding Requirements Product Approval Requirements Limits: Human Shoes Ground System<1.0x109ohms; Test Method:: ANSI/ESD STM97.1
IEC 61340-5-1-2016 Certification Requirements
EPA Electrostatic Discharge Protection Zone, Personnel Grounding Requirements Approved Requirements Limits: Human Shoes Ground System<1.0x108ohms; Test Method:: IEc 61340-5-1
